Locking drives

Power lock * Locking drive in combination with Slimchain, Powerchain or E 250 NT

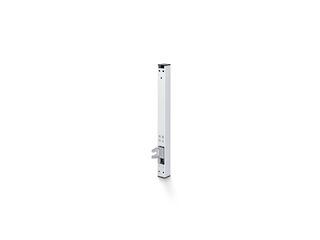

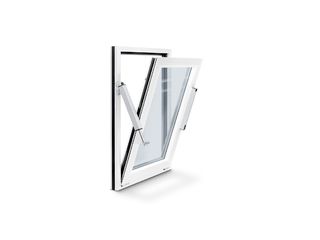

Power lock Power lock locking drive
  • System solution for locking in combination with Slimchain, Powerchain and E 250 NT window drives from the the IQ windowdrive series
  • Automatic locking of the window through access to the window transmission
  • Meets high specifications in terms of wind load, sealing in the event of rain and air tightness
  • Electronic position detection that unlocks the window before opening it
  • Electronic end-position cut-off offers protection against incorrect operation and overloading
  • High tensile and compressive force for up to six locking points
Show more
  • Locking and unlocking in six seconds
  • Synchronization of up to two Power lock and four window drives from the IQ windowdrive series possible
  • Tested in combination with window drives from the IQ windowdrive series in accordance with EN 12101-2 (SHEV)
Contact us

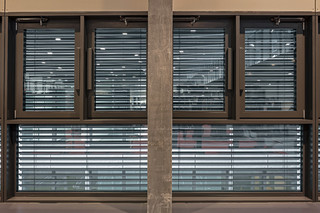

Application Areas

  • Additional safety and protection against weather conditions
  • For natural ventilation, smoke and heat extraction systems, natural smoke and heat extraction device (SHEV)
  • Can be used in the exhaust air and air intake
  • Inward-opening windows with bottom-hung, side-hung, top-hung, swing and vertically centre pivoted leaves
  • Installation on wooden, PVC or metal windows
  • Leaf or frame installation

Technical data

Power lock
Dimensions 430 x 34 x 36 mm
Space needed on frame (min.) Necessary space should be determined individually
Space requirement on leaf (min.) Necessary space should be determined individually
Opening speed ventilation 3.6 mm/s
Compressive force 600 N
Tensile force 600 N
Voltage at operation 24 V ± 25 %
Operating voltage 24 V DC
Current consumption 1.5 A
Power consumption 36 W
Duty rating 30 %
Connector cable length 2 m
Special length of connector cable 5 m, 7.5 m
Min. core cross section 0.75 mm²
Number of cores 4 cores
Service temperature -5 - 70 °C
IP rating IP42
protection rating III
Adjustable opening speed (ventilation) Yes
SHEV tested Yes
KNX ability Yes
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window INWARD-opening leaf installation Yes
Side-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Top-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening leaf installation Yes
