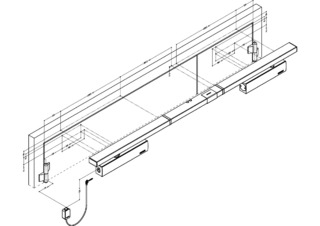

TS 5000 R-ISM/0 with free swing function * Overhead door closer system with guide rail for double leaf doors with integrated closing sequence control, free swing function on the active leaf and integrated smoke switch
- System comprising TS 5000 E Hy 3-6 and TS 5000 and R-ISM/0 guide rail
- Passive leaf with TS 5000 with closing force EN2-6 or TS 5000 ECline with closing force EN3-6
- Active leaf with TS 5000 E Hy (24 V) and adjustable closing force EN3-7
- Electric hold-open of the passive leaf possible via hold-open magnet
- Active leaf held open via free swing door closer
- Comfort hold-open function on the active leaf to latch the door at the maximum opening angle
- Operating voltage 230 V AC
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
- Smoke switch with contamination indicator and adaption of the alarm threshold
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- Visual closing force display for easy control of the setting
- All functions can be adjusted from the front
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Minimum hinge clearance 1500 mm, minimum width of the active leaf 875 mm and of the passive leaf 400 mm
- Hold-open systems with integrated smoke switch
- Door leaf installation hinge side
Technical data
TS 5000 R-ISM/0 with free swing function | |
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1400 mm |
Leaf width (max.) | 1400 mm |
Type of installation | Door leaf installation hinge side |
Opening angle (max.) | 180 ° |
Input voltage | 230 V AC |
Frequency of supply voltage | 50 Hz |
Minimum hinge clearance | 1500 mm |
Minimum passive leaf width | 400 mm |
Suitability for fire protection doors | Yes |
Free swing area | 85 ° - 160 ° |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via valve |
Back check integrated | Yes, hydraulically adjustable |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Hold-open function | Electrical |
Hold-open device on the active leaf / passive leaf | Yes / No |
Smoke switch integrated | Yes |
Closing sequence control integrated | Yes |
