Boxer

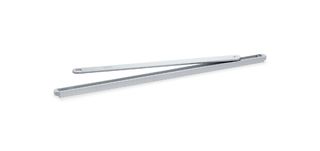

Guide rail Boxer 12 mm * With an overall height of 12 mm and slim lever for standard rebates

Guide rail Boxer 12 mm
  • Very small dimensions of only 12 mm height and 20 mm width
  • With screwed slide block
  • Geometry optimised for narrow door rebate
Contact us

Guide rail Boxer 12 mm

Application Areas

  • Single leaf doors
  • Integrated installation
  • Installation situations with little installation space
  • Right and left single-action doors
  • For doors with narrow rebate

Technical data

Guide rail Boxer 12 mm
Length 440 mm
Width 20 mm
Height 12 mm
opening restrictor upgradable Yes
Hold-open function Optional

Downloads

Variants & Accessories

GEZE flexible opening restriction for lightweight doors
Accessories

Flexible opening restrictor

for Boxer 12 mm guide rail

Product details
GEZE mechanical hold-open unit
Accessories

Mechanical hold-open unit

for Boxer 12 mm guide rail

Product details

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
