Link arm 1-leaf

TS 1500 * Overhead door closer with link arm for single leaf doors of up to 1100 mm leaf width with adjustable closing speed

Door closer TS 1500 The overhead pinion door closer is suitable for single leaf doors with a leaf width of up to 950 mm. The closing speed and hydraulic latching action can be adjusted.
  • Variable closing force of EN3 or EN4 by reversing the bearing block
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
Contact us

Application Areas

  • Right and left single-action doors for interior use
  • Single-action doors up to 1100 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

TS 1500
Closing force in accordance with EN 1154 EN 3/4
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1100 mm
Leaf width (max.) 1100 mm

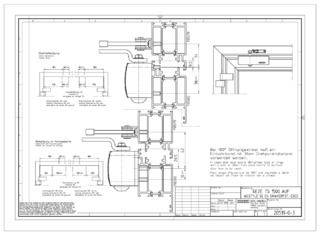

Type of installation Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable Yes, via installation
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
