Accessories

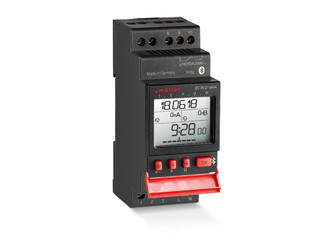

Digital programmable timer * For time-controlled changes of modes of operation on automatic doors

2-channel programmable timer
  • Integrated daily and weekly planner
  • Two signal activations are possible via two channels
  • Text-based menu guidance and symbols via a matrix display
  • Programmable with a smart device via the integrated Bluetooth interface
  • Exchangeable battery CR2032 3V with 10 years power reserve
Contact us

Digital programmable timer

Application Areas

  • For time-controlled changes of modes of operation on automatic doors
  • For installation on top-hat rails

Technical data

Digital programmable timer
Dimensions 35 x 90 x 58 mm
Switching voltage 24 V DC
Switching current 16 A
Switching capacity max. 1 W
Output Potential-free relay contact
IP rating IP20
Type of installation Top hat rail mounting
Service temperature -30 - 55 °C

Downloads

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
