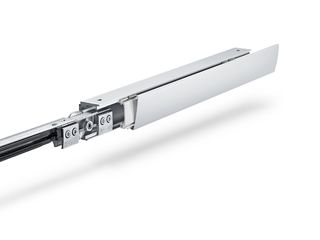

Levolan 60 Glass

Levolan 60 glass fixed panel attachment * Sliding door fitting for 60 kg glass leafs and fixed panel attachment

Levolan 60 A sophisticated solution for the easy functional design and effortless movement of manual sliding door in internal applications
  • Sliding door fitting for glass doors up to 60 kg leaf weight and with lateral fixed panel
  • With damping on one or both sides for doors with up to 60 kg leaf weight, so that the door is quietly slowed down and moved automatically into the end position
  • Small floor and side profiles create a generous clearance gauge for fixed panels and glass sliding doors
  • Fixed glass panels can be installed quickly and easily with rubber seals
  • Modular fixed panel option as an "add-on" for the basic hardware
Contact us

Application Areas

  • For design-oriented interior sliding doors for living and office areas
  • For all single- and multiple-leaf sliding doors
  • Installation to the ceiling
  • For attachment on the wall and ceiling (directly and concealed) as well as for glass installation
  • Damped on one or both sides with Levolan 60 SoftStop
  • Smooth running with Levolan 60 SoftStop makes it particularly well suited for doors in living and office spaces

Technical data

Levolan 60 glass fixed panel attachment
Leaf material Wood, Glass
Leaf weight (max.) 60 kg
Leaf width (min.) 400 mm
Leaf width (max.) 1240 mm
Type of installation Wall, Ceiling
