TSA 355 Automatic

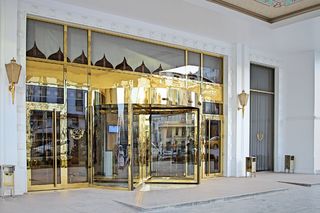

TSA 355 * Automatic revolving door system for three- or four-leaf doors

TSA 355 Automatic revolving doors offer a high degree of access convenience with high access frequency. Perfectly designed and in an elegant look, they create the first impression in your building's foyer. With a variety of different modes of operation and settings, they can be used by everybody.
  • Customised choice of diameter, passage height and surfaces
  • Extensive equipment options
  • Robust and proven drive technology for doors up to 4000 mm diameter
  • Simple installation of the door system without lifting tools
  • Fast commissioning thanks to pre-cabled and configured sensors
  • Certification in accordance with EN 16005
Contact us

Automatic revolving door system for three- or four-leaf doors

Note: The product listed may not be available in your country. Please contact your GEZE contact person or send us an e-mail.

Application Areas

  • Three- and four-leaf door systems
  • Interior and exterior doors with high access frequency
  • Representative building entrances with large incidence of light
  • Façades with slim mullion-transom constructions
  • Diameters from 1740 up to 3940 mm possible

Technical data

TSA 355
Fully automatic operation Yes
Suitability for escape and rescue routes Yes
Break-out function (BO) Yes
Inner diameter (min.) 1740 mm
Inner diameter (max.) 3940 mm
For 3-leaf door systems Yes
For 4-leaf door systems Yes
Clear passage height 3000 mm
Canopy height (min.) 300 mm
Side elements version 8 mm LSG
Version of roof structure optical sheet metal covering, waterproof roof with waterspout
Illumination with roof variant, according to customer wishes
Floor covering Entrance mat, Entrance mat according to customer wishes
Hot-air curtain system hot water air curtain, Electric air curtain, possible, depends on the ceiling construction
Night-time closer layout Outside
Night-time closer type Manual
Night-time closer design 8 mm LSG
Lock Manual
Door handles horizontal or vertical Yes
Floor ring Yes
Disabled person's button Yes
Standard conformity EN 16005
