Boxer ISM-EFS

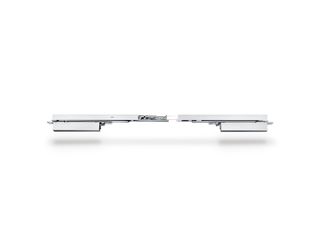

ISM guide rail Boxer small passive leaf * For small passive leaves from 420 mm, with integrated closing sequence control and levers
- Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
- Vandalism protection through flexible Bowden cable
- Flexible repositioning of the Bowden cable release mechanism in the frame, e.g. with passive leaf lockings
- With screwed slide block
- Minimal installation effort due to low number of individual parts and quick setting
Application Areas
- Double leaf doors with closing sequence control
- Integrated installation
- Right and left single-action doors
- Symmetrical and asymmetrical division of door possible
- Minimum hinge clearance 1230 mm, minimum width of the passive leaf 420 mm
Technical data
| ISM guide rail Boxer small passive leaf | |
| Minimum hinge clearance | 1230 mm |
| Minimum passive leaf width | 420 mm |
| Standard conformity | EN 1158 |
| Width | 31 mm |
| Height | 30 mm |
| Hold-open function | Optional |
| Closing sequence control integrated | Yes |
| Flexible opening restrictor | Yes |
Downloads

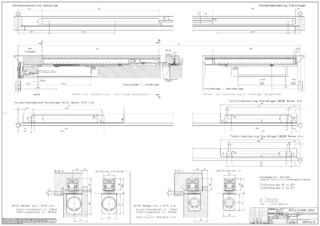

Door closer ISM / E-ISM Guide rail Boxer
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
