TS 550 NV

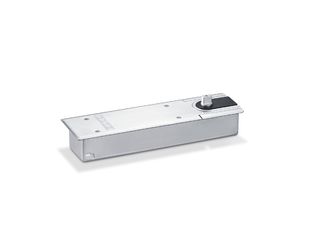

TS 550 NV F * Floor spring for single leaf fire protection doors up to 1400 mm leaf width with adjustable closing force EN 3-6 and without hold-open device
- Closing force with variable adjustment EN3-6
- Can be used for right and left hand doors without conversion
- Delayed closing adjustable to adapt the closing force of the door up to approx 80° opening angle
- Closing speed can be individually adjusted
- Hydraulic latching action which accelerates the door shortly before it is closed
- Integrated back check, slows down doors that are thrown open forcefully
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width and 300 kg weight
- Frequently used and heavy doors
- Floor mounting, concealed
Technical data
| TS 550 NV F | |
| Suitability for fire protection doors | Yes |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Use on single-/double-action door | Single-action door |
| Type of installation | Floor |
| Opening angle (max.) | 180 ° |
| Closing force in accordance with EN 1154 | EN 3 - 6 |
| Leaf width (max.) | 1400 mm |
| Leaf weight (max.) | 300 kg |
| DIN direction | left / right |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Back check integrated | Mechanically fixed |
| Delayed closing integrated | Yes |
| Position of closing force adjustment | Top |
